The Visitor Design Pattern: Add Operations Without Modifying Classes

The Problem: Adding Operations to Closed Hierarchies

Imagine you have a document with different elements:

• Paragraph
• Image
• Table

Now you need to add operations like:

• Export to PDF
• Export to HTML
• Calculate word count

Naive approach: Add methods to each class:

class Paragraph {
    void exportPDF() { ... }
    void exportHTML() { ... }
    void wordCount() { ... }
}

Problems:

1. Violates Open/Closed Principle (modifying existing classes)
2. Violates Single Responsibility (each class does export + rendering)
3. Can’t add operations if you don’t own the classes

The Solution: The Visitor Pattern

The Visitor Pattern lets you add operations to objects without modifying their classes. It uses double dispatch to separate algorithms from object structure.

Real-Life Analogy: Tax Inspector 🧑‍💼

A tax inspector visits different building types:

• House: Checks property tax
• Shop: Checks business tax + inventory tax
• Bank: Checks corporate tax + compliance

The inspector (visitor) performs different actions based on the building type (element), but buildings don’t need to know how taxes work.

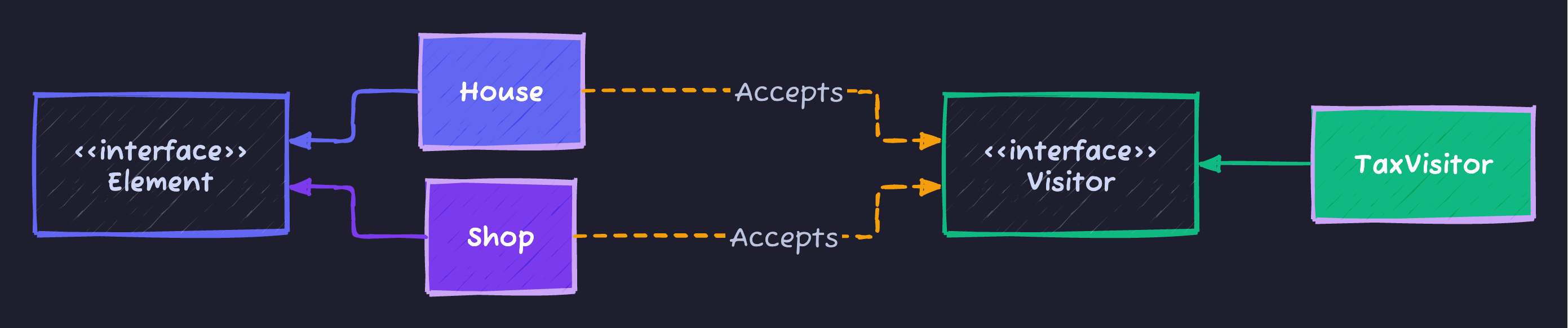

Visualizing the Pattern

Implementation

1. The Element Interface

// Element: Accepts visitors
public interface DocumentElement {
    void accept(Visitor visitor);
}

2. Concrete Elements

public class Paragraph implements DocumentElement {
    private String text;

    public Paragraph(String text) {
        this.text = text;
    }

    public String getText() { return text; }

    @Override
    public void accept(Visitor visitor) {
        visitor.visit(this); // Double dispatch!
    }
}

public class Image implements DocumentElement {
    private String url;

    public Image(String url) {
        this.url = url;
    }

    public String getUrl() { return url; }

    @Override
    public void accept(Visitor visitor) {
        visitor.visit(this);
    }
}

3. The Visitor Interface

// Visitor: Defines operations
public interface Visitor {
    void visit(Paragraph paragraph);
    void visit(Image image);
}

4. Concrete Visitors (Operations)

// Export to HTML
public class HTMLExportVisitor implements Visitor {
    private StringBuilder html = new StringBuilder();

    @Override
    public void visit(Paragraph p) {
        html.append("<p>").append(p.getText()).append("</p>\n");
    }

    @Override
    public void visit(Image img) {
        html.append("<img src=\"").append(img.getUrl()).append("\"/>\n");
    }

    public String getHTML() { return html.toString(); }
}

// Word count
public class WordCountVisitor implements Visitor {
    private int wordCount = 0;

    @Override
    public void visit(Paragraph p) {
        wordCount += p.getText().split("\\s+").length;
    }

    @Override
    public void visit(Image img) {
        // Images don't have words
    }

    public int getCount() { return wordCount; }
}

Usage

List<DocumentElement> document = List.of(
    new Paragraph("Hello world"),
    new Image("photo.jpg"),
    new Paragraph("Design patterns are cool")
);

// Export to HTML
HTMLExportVisitor htmlVisitor = new HTMLExportVisitor();
for (DocumentElement elem : document) {
    elem.accept(htmlVisitor);
}
System.out.println(htmlVisitor.getHTML());

// Count words
WordCountVisitor wordCounter = new WordCountVisitor();
for (DocumentElement elem : document) {
    elem.accept(wordCounter);
}
System.out.println("Words: " + wordCounter.getCount()); // 6

Double Dispatch Explained

Single dispatch (normal polymorphism):

elem.render(); // Calls Paragraph.render() or Image.render()

Double dispatch (Visitor):

elem.accept(visitor); // 1st dispatch: calls Paragraph.accept()
// Inside Paragraph.accept():
visitor.visit(this);  // 2nd dispatch: calls visitor.visit(Paragraph)

This allows the operation to depend on both the element type and visitor type.

In The Wild (Real World Examples)

1. Compiler AST Traversal

Abstract Syntax Trees use Visitor to perform operations like:

• Type checking
• Code generation
• Optimization

2. Java NIO File Visitor

Files.walkFileTree(startPath, new SimpleFileVisitor<Path>() {
    @Override
    public FileVisitResult visitFile(Path file, BasicFileAttributes attrs) {
        System.out.println("Visiting: " + file);
        return FileVisitResult.CONTINUE;
    }
});

Cheat Sheet

Feature	Details
Category	Behavioral
Problem Solved	Adding operations without modifying classes
Key implementation	accept(Visitor v) + v.visit(this) (double dispatch)
Pros	Open/Closed (add operations easily), Single Responsibility
Cons	Breaking change (adding new element type requires updating all visitors)

Tips to Remember 🧠

• “Tax Inspector”: Different buildings, one inspector with different procedures.
• “Double Dispatch”: Element calls visitor, visitor calls back to element.
• “When to use”: Adding operations is frequent, adding element types is rare.
