FastAPI Tutorial Part 16: Docker and Deployment

Introduction

Moving from localhost to production involves more than just running a script. We need stability, restart capability, and performance.

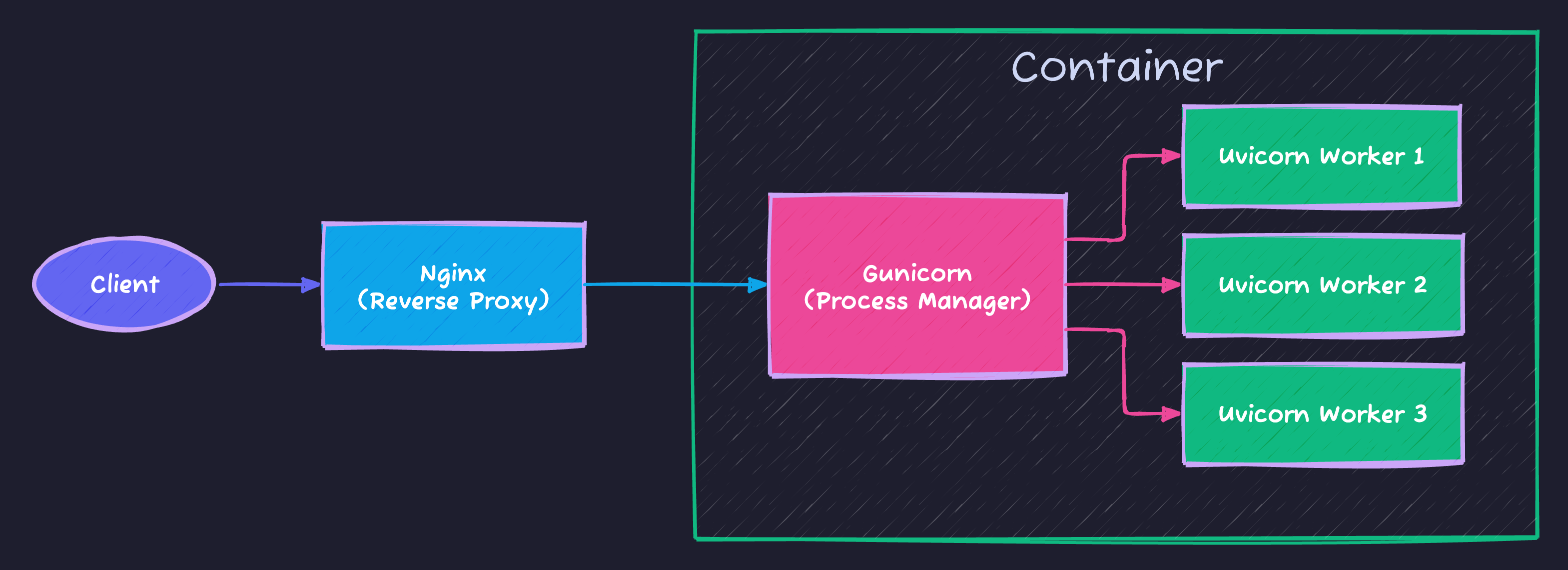

Production Architecture

We don’t expose FastAPI directly to the internet. Instead, we use a robust architecture:

This setup ensures:

1. Nginx: Handles SSL, compression, and slow clients.
2. Gunicorn: Manages processes (restarts them if they crash).
3. Uvicorn: Runs your async FastAPI code at high speed.

Dockerfile

We use Multi-Stage Builds to keep our final image small and secure.

Production Dockerfile

# Stage 1: Builder (Compiles dependencies)
FROM python:3.11-slim as builder

WORKDIR /app
RUN python -m venv /opt/venv
ENV PATH="/opt/venv/bin:$PATH"

COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

# Stage 2: Runtime (Minimal image)
FROM python:3.11-slim

WORKDIR /app
# Copy virtual env from builder stage
COPY --from=builder /opt/venv /opt/venv
ENV PATH="/opt/venv/bin:$PATH"

COPY ./app ./app

# Security: Don't run as root
RUN adduser --disabled-password --gecos "" appuser
USER appuser

EXPOSE 8000
CMD ["gunicorn", "app.main:app", "-w", "4", "-k", "uvicorn.workers.UvicornWorker", "-b", "0.0.0.0:8000"]

Docker Compose

# docker-compose.yml
version: "3.8"

services:
  api:
    build: .
    ports:
      - "8000:8000"
    environment:
      - DATABASE_URL=postgresql://user:pass@db:5432/app
      - SECRET_KEY=${SECRET_KEY}
    depends_on:
      - db
      - redis

  db:
    image: postgres:15
    environment:
      - POSTGRES_USER=user
      - POSTGRES_PASSWORD=pass
      - POSTGRES_DB=app
    volumes:
      - postgres_data:/var/lib/postgresql/data

  redis:
    image: redis:alpine

  celery:
    build: .
    command: celery -A app.celery_app worker --loglevel=info
    environment:
      - DATABASE_URL=postgresql://user:pass@db:5432/app
    depends_on:
      - redis
      - db

volumes:
  postgres_data:

Deployment Workflow

Automation is key. Here is a typical conceptual pipeline:

graph LR
    Dev[Developer] -->|Push| Git[GitHub]
    Git -->|Trigger| CI[CI/CD Pipeline]

    subgraph CI Process
        CI --> Test[Run Tests]
        Test --> Build[Build Docker Image]
        Build --> Push[Push to Registry]
    end

    Push -->|Deploy| Server[Production Server]
    Server -->|Pull| Pull[Pull New Image]
    Pull -->|Restart| Restart[Restart Containers]

    style CI fill:#f9f,stroke:#333
    style Server fill:#bbf,stroke:#333

Running with Compose

Docker Compose orchestrates your API, Database, and Cache together.

# Build and run
docker-compose up --build

# Run in background
docker-compose up -d

# View logs
docker-compose logs -f api

# Stop
docker-compose down

Environment Configuration

# app/config.py
from pydantic_settings import BaseSettings

class Settings(BaseSettings):
    database_url: str
    secret_key: str
    debug: bool = False
    allowed_hosts: list = ["*"]

    class Config:
        env_file = ".env"

settings = Settings()

Production Checklist

Item	Action
HTTPS	Use reverse proxy (nginx)
Secrets	Environment variables
Logging	Structured JSON logs
Health check	/health endpoint
Database	Connection pooling
Workers	Multiple Gunicorn workers

Health Check Endpoint

@app.get("/health")
async def health_check():
    return {
        "status": "healthy",
        "database": await check_db_connection(),
        "redis": await check_redis_connection()
    }

Nginx Configuration

upstream api {
    server api:8000;
}

server {
    listen 80;
    server_name api.example.com;

    location / {
        proxy_pass http://api;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

Summary

Component	Purpose
Dockerfile	Container definition
docker-compose	Multi-service orchestration
Gunicorn	Production WSGI server
Nginx	Reverse proxy, SSL

Next Steps

In Part 17, we’ll explore Performance and Caching - optimizing your FastAPI application.
